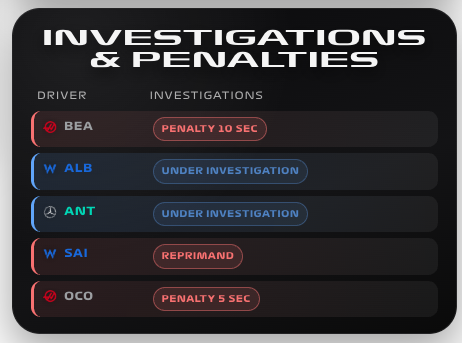

Investigations
Keep steward investigations and penalties in a focused list. Show only affected drivers for a compact view, or include the whole field for context.
Availability
Public live / Replay. Enable Investigations, Driver List and Driver Positions. The card follows Race Control-derived information from public live timing or a replay. It does not replace published FIA decisions.
Add the card
- Open your dashboard, select Edit dashboard, then Add card.
- Search for F1 and select the Investigations card.
- Select Investigations under Data Sources and confirm Driver List and Driver Positions. Leave Show all drivers off to keep attention on active cases.
- Select Save.
If the card is missing from the picker, follow Card installation. With more than one F1 Sensor entry, use the sources from the same entry; see Entity selection.
Minimal YAML
Use this in a manual dashboard card. Replace any entity ID with the one in your installation if it differs.
type: custom:f1-investigations-card
investigations_entity: sensor.f1_investigations
theme_mode: auto
Use the card
Read the investigation or penalty status alongside Race Control messages. For the published decision itself, open FIA Documents.
Configuration
Data sources
The defaults below are the card’s fallback values. Automatic discovery connects standard sources to the selected integration entry, including renamed entity IDs. See Entity selection.
| Option | Default | Description |
|---|---|---|
investigations_entity | sensor.f1_investigations | Investigations and penalty information. Select the entity from your F1 Sensor entry. |
drivers_entity | sensor.f1_driver_list | Driver List for names, teams and driver detail. Select the entity from your F1 Sensor entry. |
positions_entity | sensor.f1_driver_positions | Driver Positions for timing and running order. Select the entity from your F1 Sensor entry. |
no_spoiler_entity | switch.f1_no_spoiler_mode | Entity whose on state enables spoiler protection. See No Spoiler Mode. |
Display and behavior
| Option | Default | Description |
|---|---|---|
theme_mode | dark | dark, light or auto; auto follows Home Assistant. See Appearance. |
title | Investigations & Penalties | Card title |
show_header | true | Show the card header |
show_table_header | true | Show column labels |
show_team_logo | false | Show team logo |
show_full_name | false | Show full driver names |
team_logo_style | color | color or white for team logos. |
show_all_drivers | false | Show all drivers, not only affected drivers |
font_style | wide | wide, balanced or system. See Typography. |
All bundled cards also support f1_entry_id and card actions. Home Assistant layout settings remain available in the dashboard editor.
When data is missing
No affected drivers is a normal state when there are no investigations or penalties to show. Turn on Show all drivers only if you prefer a full field view. If you know a case exists, check whether it has reached the Investigations entity.
For an Entity not found message, check the selection in Data Sources and confirm that the entity is enabled in F1 Sensor. For a missing card type or an old interface after an update, use the card loading checks.
