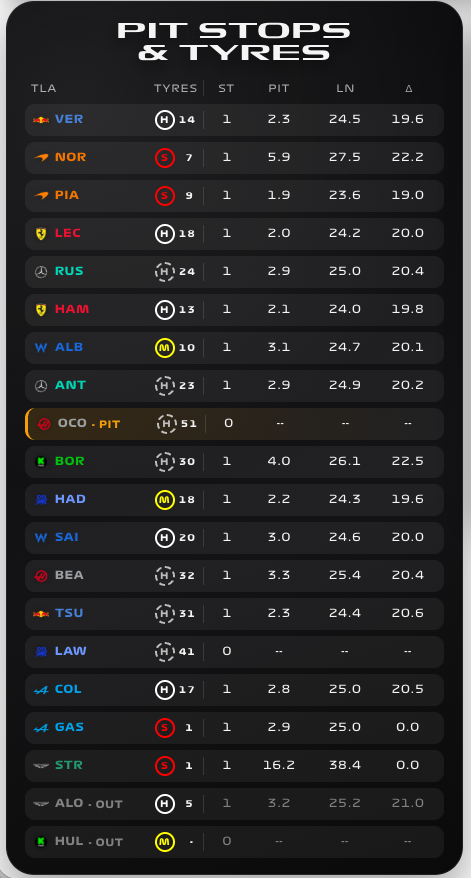

Pit Stops
Review each driver’s stops, fitted tyres and available pit timing. Compare stop duration and pit-lane time while keeping the latest tyre information beside the stop history.
Availability
F1TV live / Replay. Enable Pit Stops, Current Tyres, Driver Positions and Driver List. Live pit-stop timing uses optional F1TV Auth enhanced data. Replay Mode can show pit details when they are present in the archive; it does not guarantee every timing field.
Add the card
- Open your dashboard, select Edit dashboard, then Add card.
- Search for F1 and select the Pit Stops card.
- Select Pit Stops under Data Sources and confirm the driver and tyre sources. Keep stop count and tyre information visible. Enable tyre laps if you want stint age alongside each stop.
- Select Save.
If the card is missing from the picker, follow Card installation. With more than one F1 Sensor entry, use the sources from the same entry; see Entity selection.
Minimal YAML
Use this in a manual dashboard card. Replace any entity ID with the one in your installation if it differs.
type: custom:f1-pitstop-overview-card
pitstops_entity: sensor.f1_pitstops
theme_mode: auto
Use the card
Pit-stop duration and total pit-lane time measure different parts of a stop. Missing values are left unavailable rather than estimated. Delta compares available stop times with the fastest stop.
Configuration
Data sources
The defaults below are the card’s fallback values. Automatic discovery connects standard sources to the selected integration entry, including renamed entity IDs. See Entity selection.
| Option | Default | Description |
|---|---|---|
drivers_entity | sensor.f1_driver_list | Driver List for names, teams and driver detail. Select the entity from your F1 Sensor entry. |
tyres_entity | sensor.f1_current_tyres | Current Tyres for compound and stint detail. Select the entity from your F1 Sensor entry. |
pitstops_entity | sensor.f1_pitstops | Pit Stops for stop counts and available timings. Select the entity from your F1 Sensor entry. |
positions_entity | sensor.f1_driver_positions | Driver Positions for timing and running order. Select the entity from your F1 Sensor entry. |
auth_status_entity | sensor.f1_f1tv_token_status | F1TV token status entity used for enhanced-data notices. |
no_spoiler_entity | switch.f1_no_spoiler_mode | Entity whose on state enables spoiler protection. See No Spoiler Mode. |
Display and behavior
| Option | Default | Description |
|---|---|---|
theme_mode | dark | dark, light or auto; auto follows Home Assistant. See Appearance. |
title | Pit Stops & Tyres | Card title |
show_header | true | Show the card header |
show_table_header | true | Show column labels |
show_tla | true | Show driver TLA |
show_full_name | false | Show full driver names |
show_team_logo | false | Show team logo |
team_logo_style | color | color or white for team logos. |
show_status | true | Show pit stop status |
show_tyre | true | Show tyre compound |
show_tyre_laps | false | Show laps completed on the current tyre |
show_pit_count | true | Show number of stops |
show_pit_time | true | Show pit stop duration |
show_pit_lane_time | true | Show total pit lane time |
show_pit_delta | true | Show delta to fastest stop |
show_availability_notice | true | Show informational enhanced-data notices. Expired, invalid or rejected authentication warnings stay visible. |
font_style | wide | wide, balanced or system. See Typography. |
All bundled cards also support f1_entry_id and card actions. Home Assistant layout settings remain available in the dashboard editor.
When data is missing
Before the first stop, an empty history is expected. Missing pit timing during a live session can indicate that enhanced data is unavailable. Check the notice and F1TV status; a replay may simply lack that field. Hiding availability notices does not hide authentication errors.
For an Entity not found message, check the selection in Data Sources and confirm that the entity is enabled in F1 Sensor. For a missing card type or an old interface after an update, use the card loading checks.
