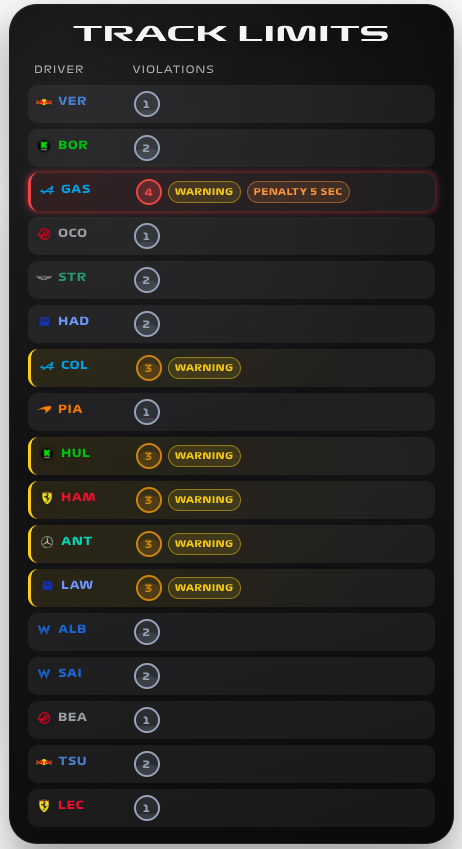

Track Limits
Track deleted laps, black-and-white warnings and track-limit penalties by driver. Use the affected-driver view to keep routine timing separate from stewarding information.
Availability
Public live / Replay. Enable Track Limits, Driver List and Driver Positions. Updates follow available Race Control information during public live timing or replay.
Add the card
- Open your dashboard, select Edit dashboard, then Add card.
- Search for F1 and select the Track Limits card.
- Select Track Limits under Data Sources and confirm the driver sources. Leave Show all drivers off to show only drivers with recorded violations.
- Select Save.
If the card is missing from the picker, follow Card installation. With more than one F1 Sensor entry, use the sources from the same entry; see Entity selection.
Minimal YAML
Use this in a manual dashboard card. Replace any entity ID with the one in your installation if it differs.
type: custom:f1-track-limits-card
track_limits_entity: sensor.f1_track_limits
theme_mode: auto
Use the card
A deleted lap, a warning and a penalty are different events. The card presents the information received for each driver; use Race Control and FIA Documents for additional context.
Configuration
Data sources
The defaults below are the card’s fallback values. Automatic discovery connects standard sources to the selected integration entry, including renamed entity IDs. See Entity selection.
| Option | Default | Description |
|---|---|---|
track_limits_entity | sensor.f1_track_limits | Track Limits violations and warnings. Select the entity from your F1 Sensor entry. |
drivers_entity | sensor.f1_driver_list | Driver List for names, teams and driver detail. Select the entity from your F1 Sensor entry. |
positions_entity | sensor.f1_driver_positions | Driver Positions for timing and running order. Select the entity from your F1 Sensor entry. |
no_spoiler_entity | switch.f1_no_spoiler_mode | Entity whose on state enables spoiler protection. See No Spoiler Mode. |
Display and behavior
| Option | Default | Description |
|---|---|---|
theme_mode | dark | dark, light or auto; auto follows Home Assistant. See Appearance. |
title | Track Limits | Card title |
show_header | true | Show the card header |
show_table_header | true | Show column labels |
show_team_logo | false | Show team logo |
show_full_name | false | Show full driver names |
team_logo_style | color | color or white for team logos. |
show_all_drivers | false | Show all drivers, not only drivers with violations |
font_style | wide | wide, balanced or system. See Typography. |
All bundled cards also support f1_entry_id and card actions. Home Assistant layout settings remain available in the dashboard editor.
When data is missing
An empty affected-driver list can mean that no track-limit violations have been reported. It does not imply the integration is disconnected. Check the Track Limits entity if messages are present in Race Control but the card remains empty.
For an Entity not found message, check the selection in Data Sources and confirm that the entity is enabled in F1 Sensor. For a missing card type or an old interface after an update, use the card loading checks.
